What is the Tigo TS4-X-O MC4 800W Power Optimizer used for?

The Tigo TS4-X-O MC4 800W Power Optimizer is a module-level device that improves photovoltaic system performance by reducing mismatch and shading losses and allowing each solar module to operate at its optimal power point.

Which solar modules are compatible with the TS4-X-O MC4 800W?

The TS4-X-O MC4 800W is compatible with crystalline solar modules up to 800 W, provided the module voltage and current values are within Tigo’s specified limits.

Is the Tigo TS4-X-O MC4 800W compatible with standard string inverters?

Yes. The optimizer is designed to work with a wide range of standard string and hybrid inverters, offering inverter-agnostic system design flexibility.

Does the TS4-X-O MC4 800W require monitoring hardware to operate?

No. Basic module-level optimisation operates without additional monitoring hardware. Module-level monitoring and diagnostics are available when used with Tigo communication devices.

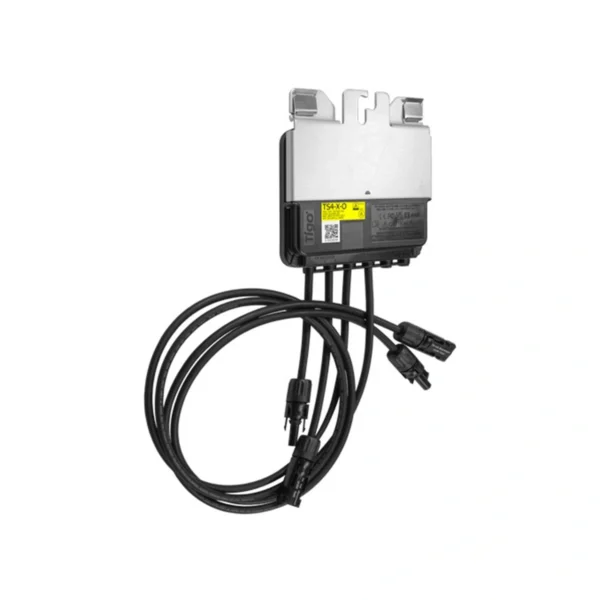

Tigo TS4-X-O MC4 800W power optimizer for solar modules, engineered for high-power PV panels and supplied at wholesale prices by a European solar distributor for professional installers and resellers.

Tigo TS4-X-O MC4 800W Power Optimizer – Module-Level Optimization

The Tigo TS4-X-O MC4 800W is a module-level power optimizer designed for high-power solar panels up to 800W. It improves PV system performance by reducing mismatch and shading losses while remaining compatible with standard string and hybrid inverters.

Function: Optimization + monitoring + rapid shutdown (all-in-one).
Key spec headline: Designed for modules up to 800 W

Please note that the Tigo power optimizers are not compatible with all inverters. Please refer to the relevant specifications the compatibility list by Tigo.

SKU: TIGO-TS4-X-O-MC4 -800W

49.88 €

In stock

EU Warehouse i

3Buy Partner stock.

Estimated delivery: 3–8 working days

Shipping type: Parcel / courier

In stock

Compare

VAT Compliance EU / EEA

0% VAT Eligibility

Manufacturer warranty

General Terms and Conditions

International delivery available

Non-EU Delivery Terms

Upgrade Account!

Trade Pricing & Reseller Discounts

APPLY & GET APPROVED

Product description

Optimizer + Rapid Shutdown + Monitoring

Tigo TS4-X-O MC4 800W Power Optimizer for Solar Panels

You got shading issues? The Tigo TS4-X-O 800W power optimizer is your solution.

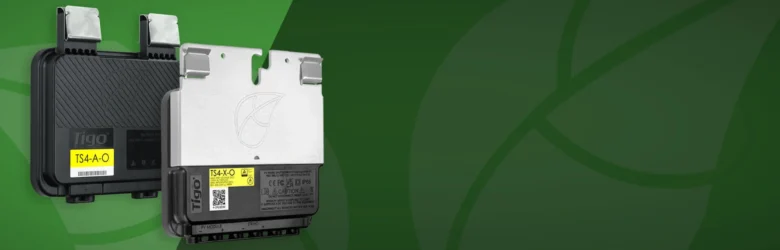

Tigo TS4-X-O and TS4-A-O solar panel optimisers for module-level performance monitoring and rapid shutdown, supplied by a European solar wholesaler for professional installers and resellers.

The Tigo TS4-X-O MC4 800W Power Optimizer is a next-generation module-level optimisation device developed for modern photovoltaic systems using high-power solar modules. Designed to support modules up to 800 watts, it enables each panel to operate independently at its optimal power point within a PV string.

This makes the TS4-X-O particularly suitable for residential, commercial, and industrial PV installations where solar module mismatch, partial shading, or complex roof layouts can otherwise limit system performance.

Module-Level Performance Optimisation

Independent MPPT per Module

The TS4-X-O performs solar module -level maximum power point tracking (MPPT). Instead of the entire string being limited by the weakest module, each solar panel is optimised individually.

This results in:

Reduced mismatch losses
Higher total string energy yield
Improved performance under partial shading
More stable long-term system output

Designed for High-Power Solar Modules

800W Optimisation Capability

With support for solar modules up to 800W, the TS4-X-O is specifically designed for large-format, high-power panels, including modern N-type and bifacial modules increasingly used in European PV systems.

MC4 Connector Interface

The optimizer is equipped with MC4 connectors, allowing seamless integration with standard PV module cabling and simplifying installation without proprietary connectors.

Inverter-Agnostic System Integration

Broad Inverter Compatibility

Unlike inverter-locked optimisation solutions, the TS4-X-O is designed to operate with a wide range of standard string and hybrid inverters. This provides flexibility during system design and avoids dependency on a single inverter manufacturer.

Compatibility should always be verified during project planning.

Monitoring and System Visibility (Optional)

Tigo Monitoring Ecosystem

The TS4-X-O can operate as a standalone optimizer without monitoring hardware. When paired with Tigo communication devices (such as Cloud Connect), it enables module-level monitoring, diagnostics, and performance analysis.

This is particularly valuable for:

Commissioning verification
O&M troubleshooting
Performance audits
Large or complex PV installations

Safety and Reliability

Reduced Electrical Stress

By balancing module output at the source, the optimizer reduces electrical stress across the string caused by mismatch, aging, or environmental differences. This supports more stable system operation and easier fault identification.

Outdoor-Ready Design

The TS4-X-O is designed for permanent outdoor installation in rooftop and ground-mounted PV systems, with robust construction suitable for European climate conditions.

Installation and Applications

Typical Use Cases

Residential PV systems with shading or mixed orientations
Commercial rooftop installations
High-power PV arrays using large-format modules
Retrofit projects requiring module-level optimisation

Installation should be performed by qualified professionals in accordance with Tigo installation guidelines and local electrical regulations.

For Installers and EPCs

The Tigo TS4-X-O MC4 800W Power Optimizer provides a flexible, inverter-agnostic solution for improving PV system performance at the module level. Its support for high-power modules and optional monitoring integration make it a future-ready choice for modern PV installations.

Installer benefits:

Higher energy yield
Reduced shading and mismatch losses
Compatibility with high-power modules
No inverter lock-in
Optional module-level monitoring

Key Features for Installer

Module-level power optimisation
Supports solar modules up to 800W
Individual MPPT per module
MC4 connector interface
Inverter-agnostic design
Retrofit and new installation compatible
Optional Tigo module-level monitoring
Suitable for residential and commercial PV systems

FAQ regarding Tigo TS4-X-O 800W Power Optimizer

What is the Tigo TS4-X-O MC4 800W used for?

It is used to optimise the performance of individual solar modules by reducing mismatch and shading losses in PV systems using high-power panels. Watch our solar trainings and webinars or visit you 3Buy Youtube Channel. … or alternatively you can browse for our latest articles regarding solar cables in our Solar Distributor Blog.

Which solar modules are compatible with the TS4-X-O?

The TS4-X-O supports crystalline solar modules up to 800W, provided voltage and current limits are respected.

Does the TS4-X-O require a specific inverter brand?

No. It is compatible with a wide range of standard string and hybrid inverters. Inverter compatibility should be checked during system design.

Is monitoring required for the optimizer to function?

No. Basic optimisation works without monitoring hardware. Module-level monitoring is available when combined with Tigo communication devices.

<?php
if (function_exists(‘pll_the_languages’)) {
pll_the_languages([‘raw’ => 1, ‘hide_if_no_translation’ => 1]);
}
?>

<!– Schema dynamically injected in wp_head via PHP for rich snippet compliance –>

Specification

Manufacturer

Brand	Tigo

Technical Specifications

Weight	0.520 kg
Dimensions	139.7 × 138.4 × 22.9 mm
Brand	Tigo
Product Category	Optimizers, Power Management
Rated Power [W]Indicates the maximum continuous power output or input the device can handle under standard operating conditions, measured in watts (W).	800W
MPPT Voltage Range [V]The MPPT (Maximum Power Point Tracking) voltage range refers to the range of input voltages at which an MPPT solar charge controller or inverter can operate efficiently to optimize the power output of a solar panel or array.	20V-80V
Max. Fuse Rating	30A
Connector TypeDefines the electrical or fluid connection used in the system—includes plug types like MC4, Anderson, SAE, XT60, as well as ring terminals and hard-wired or quick-connect setups for solar, batteries, HVAC, and heating applications.	MC4Industry-standard PV connector for safe, weatherproof DC wiring., MC4-Evo2Next-generation MC4 connector rated up to 1500 V DC for utility-scale PV.
Protection Rating [IP]IP (or \"Ingress Protection\") ratings are defined in international standard EN 60529 (British BS EN 60529:1992, European IEC 60509:1989). They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture.	IP68Fully dustproof and resistant to continuous water immersion.
WarrantyNormally covers, manufacturing defects, durability issues, or equipment failure. The warranty typically covers the cost of replacing the faulty or damaged panel with a new working one. Please refer to the Warranty Documents of the product on the Manufacturer s webpage.	25 Years

The information on this page is a general summary. For exact specifications, safety instructions, and compliance details, please refer to the product datasheet or the manufacturer’s website. Always follow applicable regulations and consult a licensed installer. For further assistance, contact 3Buy Solar.

Related Products

SMA Sunny Home Manager 2.0 energy management system with integrated energy meter, supplied by a European solar wholesaler for professional installers and EPC companies.

Compare

SMA Sunny Home Manager 2.0 (HM-20) – EMS with Integrated Energy Meter

SMA

In stock

546.88 €

Add to cart

Compare

100m Solar PV DC Cable 10mm² (Black)

CableWorld, FlexiSun, KBE Berlin, LAPP, Leader, Suntree

In stock

100 meters

Select options

Compare

100m Solar PV DC Cable 10mm² (Red)

CableWorld, FlexiSun, KBE Berlin, LAPP, Leader, Suntree

In stock

137.18 €100 meters

Select options

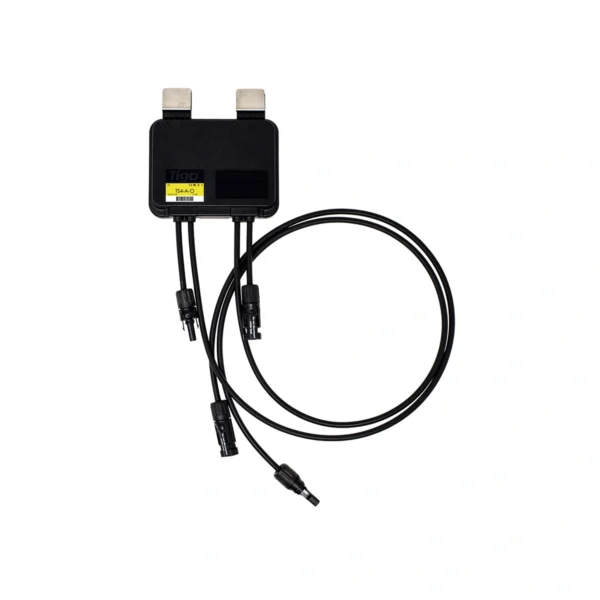

Tigo TS4-A-O 700W power optimizer for solar panels, offering module-level optimisation, monitoring, and rapid shutdown, supplied by a European solar wholesaler for installers and resellers.
