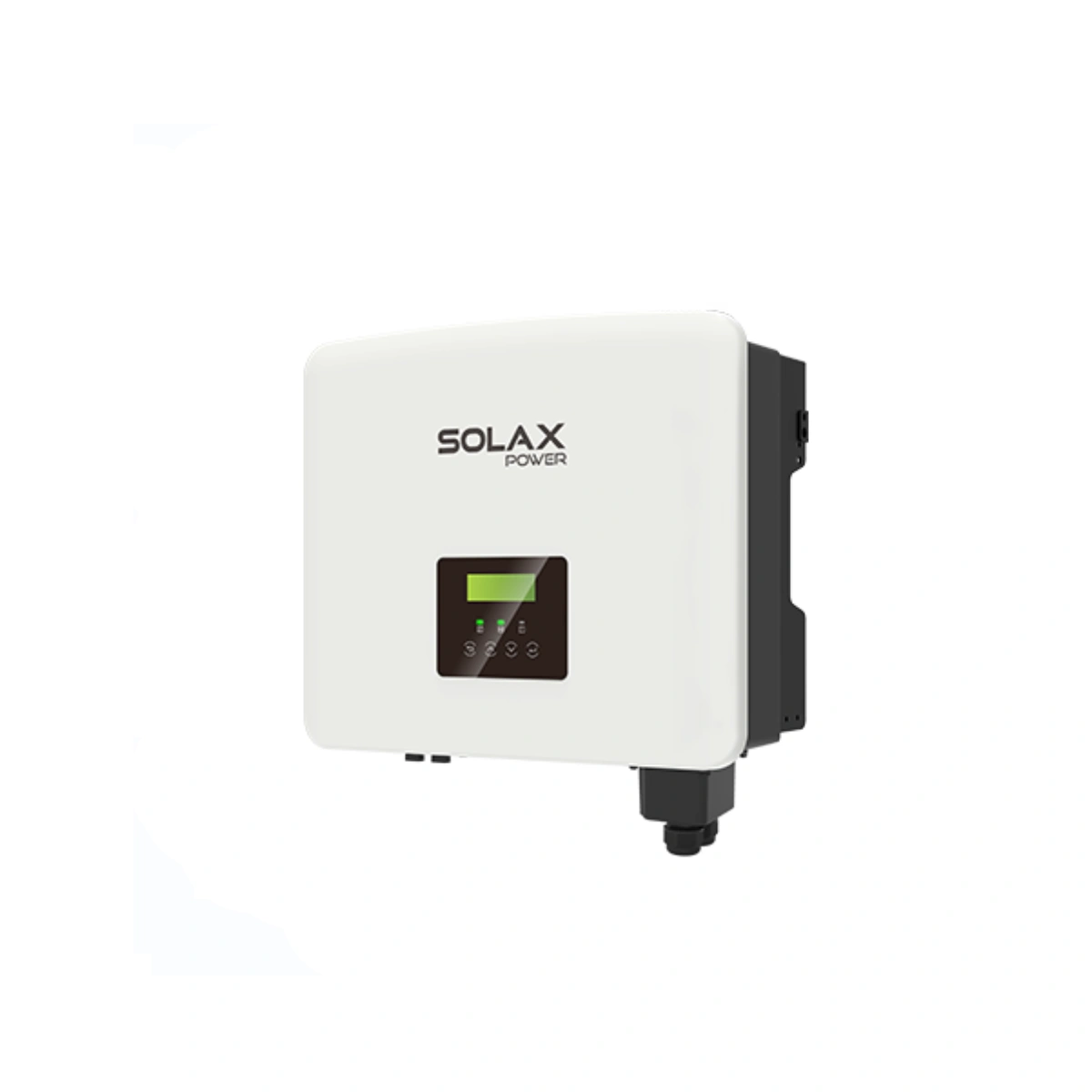

SolaX X1-Hybrid-7.5-D 7.5kW Single Phase Hybrid Inverter for Residential PV and Battery Storage
The SolaX G4 X1-Hybrid-7.5-D Single Phase 7.5kW Hybrid Inverter is designed for modern residential solar PV systems where homeowners want more than simple solar generation. It combines PV inverter operation, battery charging, energy management and backup functionality in one professional hybrid inverter platform.
For solar installers, electricians, EPCs, solar wholesalers and solar distributors in Europe, the X1-Hybrid-7.5-D offers a strong technical match for high-performance residential energy storage projects. It is suitable for self-consumption systems, backup power applications, smart home energy management and complete solar battery kits.
According to the SolaX datasheet, the X1-Hybrid G4 range includes 3.0kW, 3.7kW, 5.0kW, 6.0kW and 7.5kW models, with the X1-HYBRID-7.5-D positioned as the highest output single phase model in this range.
7.5kW Output with Up to 15kWp Recommended PV Array Power
The SolaX X1-Hybrid-7.5-D is specified with 7,500W rated AC output power and 15.0kWp maximum recommended PV array power. This gives installers room to design residential PV systems with strong solar input capacity while using one compact single phase hybrid inverter.
The inverter supports 200% PV oversizing and up to 110% AC output, making it suitable for installations where the PV array is designed to improve generation across different seasons, roof orientations and daily production windows.
Dual MPPT Design for Flexible Solar PV Layouts
The X1-Hybrid-7.5-D includes 2 MPPT trackers with 1 string per MPPT, helping installers design more flexible solar PV systems. This is useful for residential roofs with different orientations, partial shading conditions or split array layouts.
The datasheet lists a maximum PV input voltage of 600V, rated PV input voltage of 360V, 70–550V operating voltage range, 70–550V MPPT voltage range, and 90V start-up voltage. Each MPPT supports 16A maximum input current and 20A maximum short-circuit current, making the inverter suitable for modern high-current solar panels.
Battery-Ready Hybrid Inverter for Energy Storage Systems
The SolaX X1-Hybrid-7.5-D is designed for solar battery integration, with a battery voltage range of 80–480V and 30A maximum charge/discharge current. The datasheet states compatibility with lithium and lead-acid batteries, giving installers flexibility when designing residential energy storage systems.
For professional PV installers and electricians, this makes the inverter a strong option for solar battery projects where the customer wants to increase self-consumption, store surplus solar energy and improve energy independence.
EPS Backup Output with Fast Switchover
The X1-Hybrid-7.5-D includes EPS off-grid output with battery, designed to support backup operation during grid interruptions when configured correctly. The datasheet lists 7,500VA rated EPS output power, 11,250VA peak EPS output power for 10 seconds, and <10ms switchover time.
This is important for installers designing backup-ready solar battery systems for homeowners who want essential load support, improved energy security and a more resilient residential PV system.
Smart Energy Management for Modern Solar Homes
The SolaX X1-Hybrid G4 platform includes smart management features such as smart load management, time-of-use energy management, CT compatibility with fast load response, global MPP scan for improved energy harvest and VPP-ready operation. These features help support residential solar projects where dynamic electricity tariffs, smart home loads, heat pumps, EV chargers and battery storage are part of the system design.
For installers, this allows the inverter to be positioned as part of a more complete energy storage solution rather than only a standard solar inverter.
IP65 Protection for Indoor and Outdoor Installation Flexibility
The SolaX X1-Hybrid-7.5-D has IP65 ingress protection, supporting installation flexibility for residential and light commercial environments. The datasheet also lists an operating temperature range from -35°C to +60°C, with derating above 45°C, and a maximum operating altitude of 3000m.
This makes it suitable for a wide range of European installation conditions, provided the inverter is installed according to SolaX requirements, local electrical regulations and project-specific environmental conditions.
Key Technical Specifications
| Specification | Value |
|---|---|
| Brand | SolaX Power |
| Product series | X1-Hybrid G4 |
| Model | X1-HYBRID-7.5-D |
| Product type | Single phase hybrid inverter |
| Rated AC output power | 7,500W |
| Max. recommended PV array power | 15.0kWp |
| Max. PV input voltage | 600V |
| Rated PV input voltage | 360V |
| PV operating voltage range | 70–550V |
| MPPT voltage range | 70–550V |
| Start-up voltage | 90V |
| MPPT trackers / strings | 2 MPPT / 1+1 strings |
| Max. input current per MPPT | 16A / 16A |
| Max. short-circuit current per MPPT | 20A / 20A |
| Rated AC voltage | 1 / N / PE, 220V / 230V / 240V |
| Max. output continuous current | 32.6A |
| Nominal AC frequency | 50Hz / 60Hz |
| THDi at rated power | <2% |
| Battery type | Lithium / lead-acid |
| Battery voltage range | 80–480V |
| Max. charge/discharge current | 30A |
| Rated EPS output power | 7,500VA |
| Peak EPS output power | 11,250VA for 10 seconds |
| Switchover time | <10ms |
| Max. efficiency | 97.6% |
| European efficiency | 97.0% |
| Ingress protection | IP65 |
| Dimensions | 482 × 417 × 181mm |
| Net weight | 25kg |
| Cooling concept | Smart air cooling |
| Communication interfaces | CT/meter optional, external control RS485, dongle interface, DRM, NTC optional |
| Certification | VDE-AR-N 4105, G99, G98, AS/NZS4777, EN50549, CEI 0-21, C10/11, IEC61727, RD1699, NRS097-2-1, PEA/MEA, VFR2019, PPDS |
Recommended Applications
The SolaX X1-Hybrid-7.5-D is suitable for professional solar PV and energy storage projects such as:
Residential solar PV systems
Residential solar battery storage systems
Self-consumption optimization
Backup-ready solar energy systems
Smart home energy projects
PV systems with heat pumps or EV charging loads
Single phase hybrid inverter replacements
Installer-ready complete kits
Electrical contractor solar storage projects
European residential energy storage installations
Why Solar Installers and Electricians Choose the SolaX X1-Hybrid-7.5-D
The X1-Hybrid-7.5-D gives professional installers a high-output single phase hybrid inverter with practical design flexibility. Its 15kWp PV input capability, dual MPPT layout, 80–480V battery range, IP65 protection, EPS output and <10ms backup switchover make it suitable for demanding residential solar battery systems.
For electricians and PV installers, the key advantage is that the inverter combines PV production, battery storage, backup functionality and smart load control into one well-known hybrid inverter platform. This helps reduce system complexity and supports cleaner project procurement.
B2B Solar Inverter Supply from 3Buy Solar
3Buy Solar supplies solar inverters, solar panels, solar batteries, energy storage components and complete kits for professional solar installers, electricians, EPCs, solar wholesalers, solar distributors and resellers across Europe.
The SolaX G4 X1-Hybrid-7.5-D can be sourced for residential PV projects, energy storage systems and installer-ready complete kits where a reliable single phase hybrid inverter is required. For B2B buyers, this supports faster procurement, clear product matching and efficient European solar project supply.
Product Compatibility and System Design Notes
The SolaX X1-Hybrid-7.5-D is designed for hybrid solar PV and battery systems. Before installation, always confirm compatibility with the selected battery, meter/CT configuration, communication accessories, grid requirements and local electrical standards.
For complete system procurement, installers may combine the inverter with compatible solar panels, battery storage, mounting systems, protection devices, smart meters, communication dongles and electrical accessories.
Product Datasheet and Downloads
-
Datasheet SolaX X1-Hybrid G4 EN
-
Datenblatt SolaX X1-Hybrid G4 DE
-
Product Brochure SolaX Power
-
Installation and Operation Manual SolaX X1-Hybrid G4 EN
-
User Manual SolaX X1-Hybrid G4 EN
-
Quick Installation Guide SolaX X1-Hybrid G4 EN
-
WIFI Setting Instructions
-
Signing up to Solax Cloud Instructions
-
Solax Installer pack – Manufacturer Instructions and Troubleshooting
-
Circuit and Connection Diagram
-
Installationshandbuch SolaX X1-Hybrid G4 DE
-
Benutzerhandbuch SolaX X1-Hybrid G4 DE
-
Battery Compatibility and System Documentation SolaX Hybrid Inverters
FAQ: SolaX X1-Hybrid-7.5-D Hybrid Solar Inverter
The SolaX X1-Hybrid-7.5-D is a 7.5kW single phase hybrid inverter used for residential solar PV systems with battery energy storage. It supports solar generation, battery charging, self-consumption, smart energy management and EPS backup output when installed with a compatible battery system.
According to the SolaX datasheet, the X1-Hybrid-7.5-D supports up to 15.0kWp recommended PV array power, with 600V maximum PV input voltage and two MPPT trackers. This allows installers to design flexible residential PV systems with strong solar input capacity; and makes it a strong option for solar panels with multiple roof orientations, high-power modules, and commercial energy storage designs that aim to maximize annual yield.
Yes. The SolaX X1-Hybrid-7.5-D is designed for battery energy storage systems and supports lithium and lead-acid batteries with an 80–480V battery voltage range and 30A maximum charge/discharge current. Battery compatibility should always be checked against the latest SolaX compatibility list.
Yes. The X1-Hybrid-7.5-D includes EPS off-grid output with battery. The datasheet lists 7,500VA rated EPS output power, 11,250VA peak EPS output power for 10 seconds and a switchover time of less than 10ms when the system is correctly configured.
