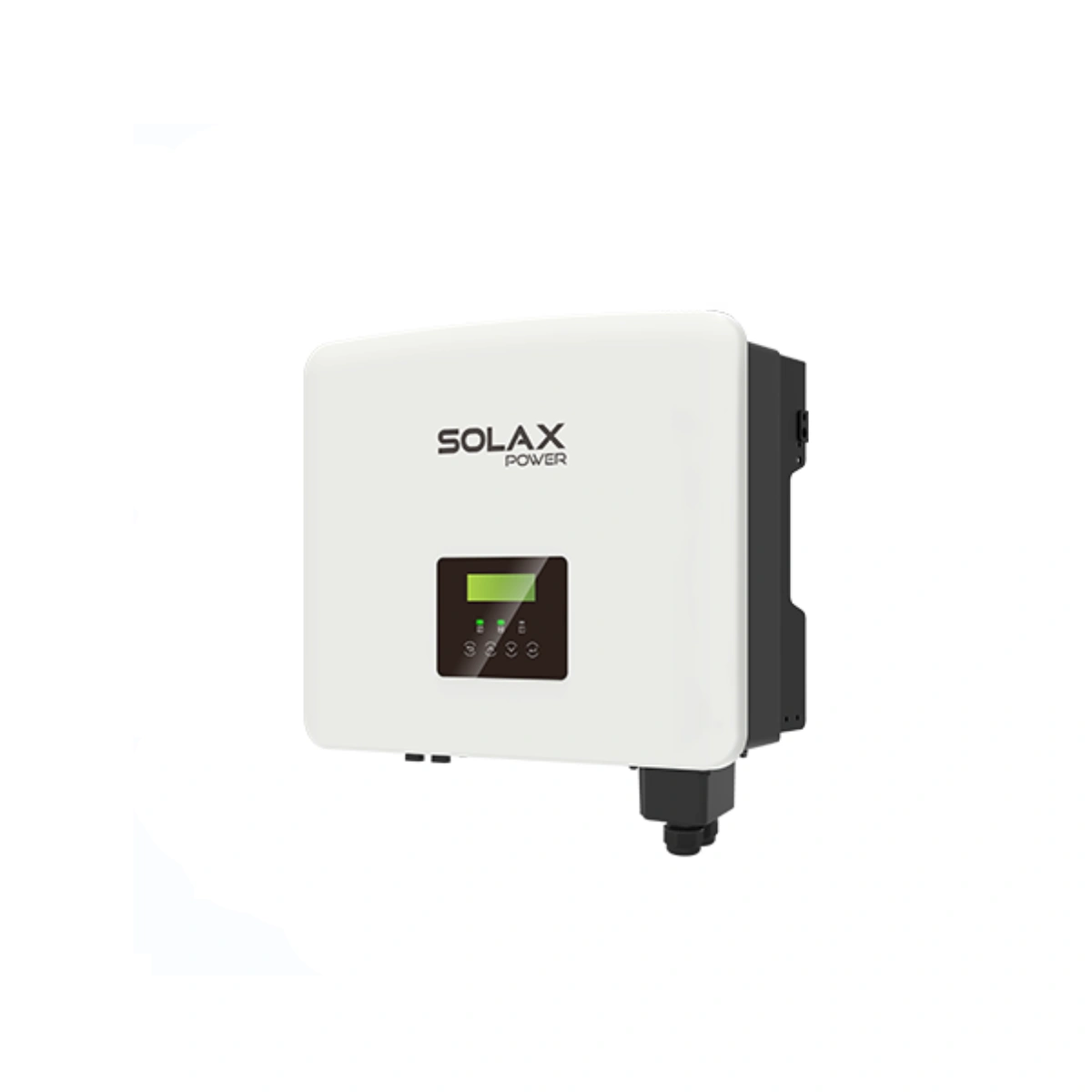

SolaX X1-Hybrid-5.0-D 5kW Single Phase Hybrid Inverter for Residential PV and Battery Storage
The SolaX G4 X1-Hybrid-5.0-D Single Phase 5kW Hybrid Inverter is built for residential solar PV systems where homeowners want to combine solar production with battery energy storage, self-consumption control and backup capability. It brings together PV inverter operation, battery charging, energy management and EPS backup support in one compact hybrid inverter platform.
For professional solar installers, electricians, EPCs, solar wholesalers and solar distributors in Europe, the X1-Hybrid-5.0-D is a practical inverter choice for standard residential PV storage projects. It is suitable for homes, small electrical installations, solar battery upgrades and complete solar PV kits where a reliable single phase hybrid inverter is required.
According to the SolaX datasheet, the X1-Hybrid G4 range includes 3.0kW, 3.7kW, 5.0kW, 6.0kW and 7.5kW models, with the X1-HYBRID-5.0-D positioned as a central 5kW residential model in the series.
5kW Rated Output with Up to 10kWp Recommended PV Array Power
The SolaX X1-Hybrid-5.0-D is specified with 5,000W rated AC output power and 10.0kWp maximum recommended PV array power. This gives installers a strong balance between household inverter output and PV input capacity, especially for residential systems designed for daytime consumption, battery charging and seasonal solar generation.
The X1-Hybrid G4 platform supports 200% PV oversizing and up to 110% AC output, helping installers design PV systems that can capture more energy across different roof orientations, weather conditions and production windows.
Dual MPPT Design for Flexible Residential Roof Layouts
The X1-Hybrid-5.0-D includes 2 MPPT trackers with 1 string per MPPT, supporting practical solar PV design for residential rooftops. This is useful when a system includes two roof orientations, split arrays or different module strings.
The datasheet lists a maximum PV input voltage of 600V, rated PV input voltage of 360V, 70–550V operating voltage range, 70–550V MPPT voltage range, and 90V start-up voltage. Each MPPT supports 16A maximum input current and 20A maximum short-circuit current, making the inverter suitable for many modern high-current solar panels.
Battery-Ready Hybrid Inverter for Energy Storage Systems
The SolaX X1-Hybrid-5.0-D is designed for battery storage integration. The datasheet specifies lithium and lead-acid battery compatibility, an 80–480V battery voltage range, and 30A maximum charge/discharge current.
For installers and electricians, this makes the inverter suitable for residential solar battery systems where the customer wants to store surplus PV production, increase self-consumption and reduce grid dependence.
EPS Backup Output with Fast Switchover
The X1-Hybrid-5.0-D includes EPS off-grid output with battery, enabling backup power functionality when the system is correctly configured with a compatible battery and backup circuit.
For the 5kW model, the datasheet lists 5,000VA rated EPS output power, 7,500VA peak EPS output power for 10 seconds, and <10ms switchover time. This makes it suitable for residential backup-ready solar battery installations where selected loads need continuity during grid interruptions.
Smart Energy Management for Modern Solar Homes
The SolaX X1-Hybrid G4 platform includes smart management functions such as smart load management, time-of-use energy management, CT compatibility with fast response, global MPP scan for improved energy harvest and VPP-ready operation. These features support residential projects with battery storage, heat pumps, smart home loads, EV charging and dynamic electricity tariffs.
For professional installers, these functions help position the X1-Hybrid-5.0-D as a complete energy storage inverter, not just a standard solar inverter.
IP65 Protection for Flexible Installation
The SolaX X1-Hybrid-5.0-D has IP65 ingress protection, giving installers flexibility for suitable indoor and outdoor installation environments. The datasheet also lists an operating temperature range from -35°C to +60°C, with derating above 45°C, and a maximum operating altitude of 3000m.
This supports a wide range of European residential installation conditions when installed according to SolaX requirements and local electrical regulations.
Key Technical Specifications
| Specification | Value |
|---|---|
| Brand | SolaX Power |
| Product series | X1-Hybrid G4 |
| Model | X1-HYBRID-5.0-D |
| Product type | Single phase hybrid inverter |
| Rated AC output power | 5,000W |
| Max. recommended PV array power | 10.0kWp |
| Max. PV input voltage | 600V |
| Rated PV input voltage | 360V |
| PV operating voltage range | 70–550V |
| MPPT voltage range | 70–550V |
| Start-up voltage | 90V |
| MPPT trackers / strings | 2 MPPT / 1+1 strings |
| Max. input current per MPPT | 16A / 16A |
| Max. short-circuit current per MPPT | 20A / 20A |
| Rated AC voltage | 1 / N / PE, 220V / 230V / 240V |
| Max. output apparent power | 5,500VA |
| Max. output continuous current | 23.9A |
| Nominal AC frequency | 50Hz / 60Hz |
| THDi at rated power | <2% |
| Battery type | Lithium / lead-acid |
| Battery voltage range | 80–480V |
| Max. charge/discharge current | 30A |
| Rated EPS output power | 5,000VA |
| Peak EPS output power | 7,500VA for 10 seconds |
| Switchover time | <10ms |
| Max. efficiency | 97.6% |
| European efficiency | 97.0% |
| Ingress protection | IP65 |
| Dimensions | 482 × 417 × 181mm |
| Net weight | 24kg |
| Cooling concept | Natural cooling |
| Communication interfaces | CT/meter optional, external control RS485, dongle interface, DRM, NTC optional |
| Certification | VDE-AR-N 4105, G99, G98, AS/NZS4777, EN50549, CEI 0-21, C10/11, IEC61727, RD1699, NRS097-2-1, PEA/MEA, VFR2019, PPDS |
Recommended Applications
The SolaX X1-Hybrid-5.0-D is suitable for professional solar PV and energy storage projects such as:
Residential solar PV systems
Home solar battery storage systems
Self-consumption optimization
Backup-ready residential solar systems
Smart home energy projects
PV systems with heat pumps or EV charging loads
Single phase hybrid inverter installations
Installer-ready complete kits
Solar battery retrofit projects
Electrical contractor PV storage installations
European residential energy storage installations
Why Solar Installers and Electricians Choose the SolaX X1-Hybrid-5.0-D
The X1-Hybrid-5.0-D gives installers a well-balanced single phase hybrid inverter for mainstream residential PV and battery projects. Its 5kW output, 10kWp PV input capability, dual MPPT design, 80–480V battery range, EPS backup output, IP65 protection and <10ms switchover time make it a practical option for homes that need solar generation, storage and backup-ready operation.
For electricians and PV installers, the key advantage is straightforward system design. The inverter supports solar production, battery charging, energy management and backup output in one platform, which helps simplify project planning and procurement.
B2B Solar Inverter Supply from 3Buy Solar
3Buy Solar supplies solar inverters, solar panels, solar batteries, energy storage components and complete kits for professional solar installers, electricians, EPCs, solar wholesalers, solar distributors and resellers across Europe.
The SolaX G4 X1-Hybrid-5.0-D can be sourced for residential PV projects, energy storage systems and installer-ready complete kits where a reliable single phase hybrid inverter is required. For B2B buyers, this supports faster procurement, clear product matching and efficient European solar project supply.
Product Compatibility and System Design Notes
The SolaX X1-Hybrid-5.0-D is designed for hybrid solar PV and battery systems. Before installation, always confirm compatibility with the selected battery, CT or meter configuration, communication accessories, backup circuit design, grid requirements and local electrical standards.
For complete system procurement, installers may combine the inverter with compatible solar panels, battery storage, mounting systems, protection devices, smart meters, communication dongles and electrical accessories.
Product Datasheet and Downloads
Datasheet SolaX X1-Hybrid G4 EN
Datenblatt SolaX X1-Hybrid G4 DE
Product Brochure SolaX Power
Installation and Operation Manual SolaX X1-Hybrid G4 EN
User Manual SolaX X1-Hybrid G4 EN
Quick Installation Guide SolaX X1-Hybrid G4 EN
WIFI Setting Instructions
Signing up to Solax Cloud Instructions
Solax Installer pack – Manufacturer Instructions and Troubleshooting
Circuit and Connection Diagram
Installationshandbuch SolaX X1-Hybrid G4 DE
Benutzerhandbuch SolaX X1-Hybrid G4 DE
Battery Compatibility and System Documentation SolaX Hybrid Inverters
FAQ: SolaX X1-Hybrid-5.0-D Hybrid Solar Inverter
The SolaX X1-Hybrid-5.0-D is a 5kW single phase hybrid inverter used for residential solar PV systems with battery energy storage. It supports solar generation, battery charging, self-consumption, smart energy management and EPS backup output when installed with a compatible battery system.
According to the SolaX datasheet, the X1-Hybrid-5.0-D supports up to 10.0kWp recommended PV array power, with 600V maximum PV input voltage and two MPPT trackers. This allows installers to design flexible residential PV systems with strong solar input capacity; and makes it a strong option for solar panels with multiple roof orientations, high-power modules, and commercial energy storage designs that aim to maximize annual yield.
Yes. The SolaX X1-Hybrid-5.0-D is designed for battery energy storage systems and supports lithium and lead-acid batteries with an 80–480V battery voltage range and 30A maximum charge/discharge current. Battery compatibility should always be checked against the latest SolaX compatibility list.
Yes. The X1-Hybrid-5.0-D includes EPS off-grid output with battery. The datasheet lists 5,000VA rated EPS output power, 7,500VA peak EPS output power for 10 seconds and a switchover time of less than 10ms when the system is correctly configured.
