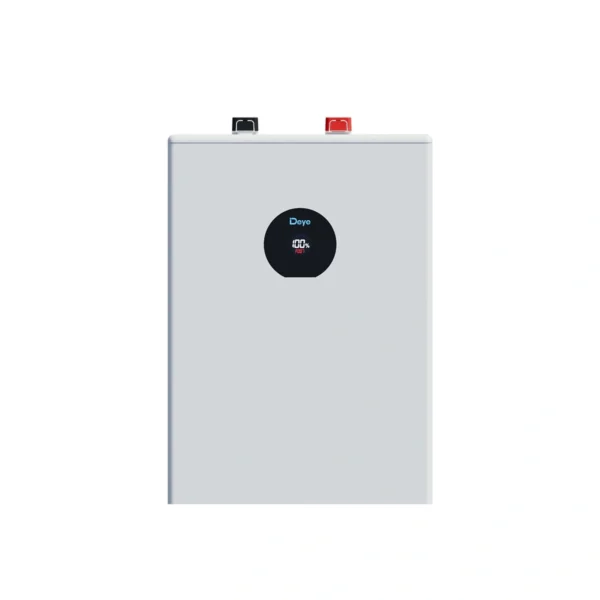

Deye SE-F12 Energy Storage System – 11.8kWh LiFePO4 Solar Battery with IP65 Protection
The most sold 11.8kWh low voltage solar battery for indoor energy storage in Central Europe
The Deye SE-F12 Energy Storage System is a high-performance 12kWh LiFePO4 solar battery designed for indoor energy storage systems in residential and small commercial solar PV installations. Built on a 51.2V low-voltage platform with 230Ah capacity, it provides stable, scalable, and efficient energy storage for modern solar applications.
Designed for solar installers, EPC companies, solar distributors, and solar wholesalers, the Deye SE-F12 delivers reliable battery performance for self-consumption, backup power, and hybrid solar systems.
High-Capacity Solar Battery for Indoor Energy Storage Systems
With 11.8kWh nominal energy, the Deye SE-F12 is optimised for:
- Residential solar PV systems
- Small commercial energy storage systems
- Self-consumption optimisation
- Backup energy storage
- Complete solar kits with solar panels and solar inverters
Operating within a 44.8V to 57.6V range, it ensures stable system performance across varying load conditions and inverter configurations.
LiFePO4 Battery Technology with Integrated BMS Protection
The Deye SE-F12 uses Lithium Iron Phosphate (LiFePO4) chemistry, providing:
- ≥6000 cycles for long service life
- High thermal stability and safety
- Integrated Battery Management System (BMS)
- Built-in circuit breaker protection
This makes it a reliable solar battery solution for energy storage systems where safety and longevity are critical.
Scalable Energy Storage System for Solar Installers
The Deye SE-F12 supports parallel connection of up to 32 units, allowing installers to scale energy storage capacity depending on project requirements.
- Modular expansion for growing systems
- Suitable for residential and commercial installations
- Ideal for structured solar PV energy storage systems
This flexibility makes it suitable for both entry-level and advanced storage projects.
Charge and Discharge Performance for Real-World Applications
- Recommended current: 115A
- Max continuous charge/discharge: 230A
- Peak discharge: 280A (10 seconds)
This ensures reliable operation under real-world load conditions, including peak demand and backup scenarios.
Indoor Installation – Controlled Environment Applications
The Deye SE-F12 is an IP21-rated solar battery, designed specifically for indoor installation in:
- Technical rooms
- Utility spaces
- Garages
- Protected plant rooms
Unlike outdoor battery systems, this model is optimised for installations where environmental conditions are controlled, ensuring cost-efficient deployment and long-term stability.
Compatibility with Solar PV and Energy Storage Systems
The Deye SE-F12 integrates seamlessly with:
- Low-voltage hybrid inverters
- Solar PV systems
- Solar panels and complete kits
- Energy storage systems with AC or DC coupling
This makes it a flexible component in modern solar installations across Europe.
Why Solar Installers Choose the Deye SE-F12
- Reliable LiFePO4 solar battery technology
- Scalable design for flexible system sizing
- Easy integration with hybrid inverter systems
- Strong performance for residential energy storage
- Cost-effective indoor battery solution
For solar wholesalers and installers, it offers a balanced combination of performance, safety, and installation simplicity.
Deye SE-F12 vs SE-F12 Max – Key Differences
- SE-F12 (this model):
- IP21 rating
- Designed for indoor installation
- Cost-efficient solution for controlled environments

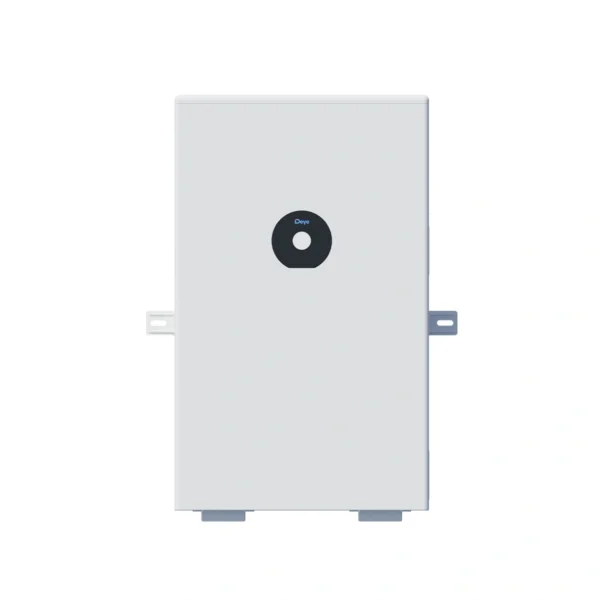

- SE-F12 Max:
- IP65 / NEMA 3R protection
- Suitable for outdoor installations
- Higher durability in harsh environments
👉 Choose SE-F12 for indoor projects
👉 Choose SE-F12 Max for outdoor or exposed installations
Applications
The Deye SE-F12 is ideal for:
- Residential solar battery systems
- Indoor energy storage installations
- Hybrid solar PV systems
- Backup power systems
- Complete solar kits with solar panels, solar inverters, and battery storage
Technical Overview
- Battery type: LiFePO4 (LFP)
- Nominal energy: 11.8 kWh
- Nominal capacity: 230 Ah
- Nominal voltage: 51.2 V
- Operating voltage: 44.8 – 57.6 V
- Max charge/discharge: 230 A
- Peak discharge: 280 A (10 sec)
- Cycle life: ≥6000 cycles
- Protection: IP21 (indoor use)
- Communication: CAN / RS485 / Bluetooth
- Scalability: up to 32 units in parallel
Product Datasheet and Downloads
Installation and User Manual Deye SE-F12 EN
Deye Hybrid Inverters Solar Battery Compatibility List
QUICK Installation Guide Deye SE-F12 EN
Installations- und Benutzerhandbücher Deye SE-F12 DE
Manufacturer Warranty Deye SE-F12 Series
FAQ regarding the Deye SE-F12-C Solar Battery
The Deye SE-F12-C 12kWh LiFePO4 battery is designed for indoor energy storage systems in residential and small commercial solar PV installations. It stores excess energy generated by solar panels and makes it available for self-consumption, backup power, and hybrid solar applications. The Deye SE-F12-C energy storage system is commonly used by solar installers to build reliable and scalable solar battery solutions within complete solar kits. Watch our solar trainings and webinars or visit you 3Buy Youtube Channel. … or alternatively you can browse for our latest articles regarding renewable and energy efficient heating and cooling in our Solar Distributor Blog.
Have you checked all our products? Go to our Solar PV and Energy Storage Shop | 3Buy Installer-Grade & DIY EU
The Deye SE-F12-C is designed for indoor use with IP21 protection, making it suitable for controlled installation environments. In contrast, the Deye SE-F12 Max features IP65 / NEMA 3R protection, allowing installation in outdoor or exposed environments. Both are LiFePO4 solar batteries, but the Max version is better suited for projects requiring higher environmental protection and outdoor durability.
Yes, the Deye SE-F12-C is an IP21-rated solar battery specifically designed for indoor installation. It is intended for use in controlled environments such as technical rooms, garages, and utility spaces where exposure to dust, moisture, and weather conditions is limited. This makes the Deye SE-F12-C LiFePO4 battery a cost-effective solution for indoor solar PV energy storage systems.
Yes, the Deye SE-F12-C energy storage system supports parallel expansion of up to 32 battery units, allowing solar installers and EPC companies to scale system capacity depending on project requirements. This modular design makes it suitable for both small residential solar battery systems and larger commercial energy storage installations using Deye-compatible inverter systems.
