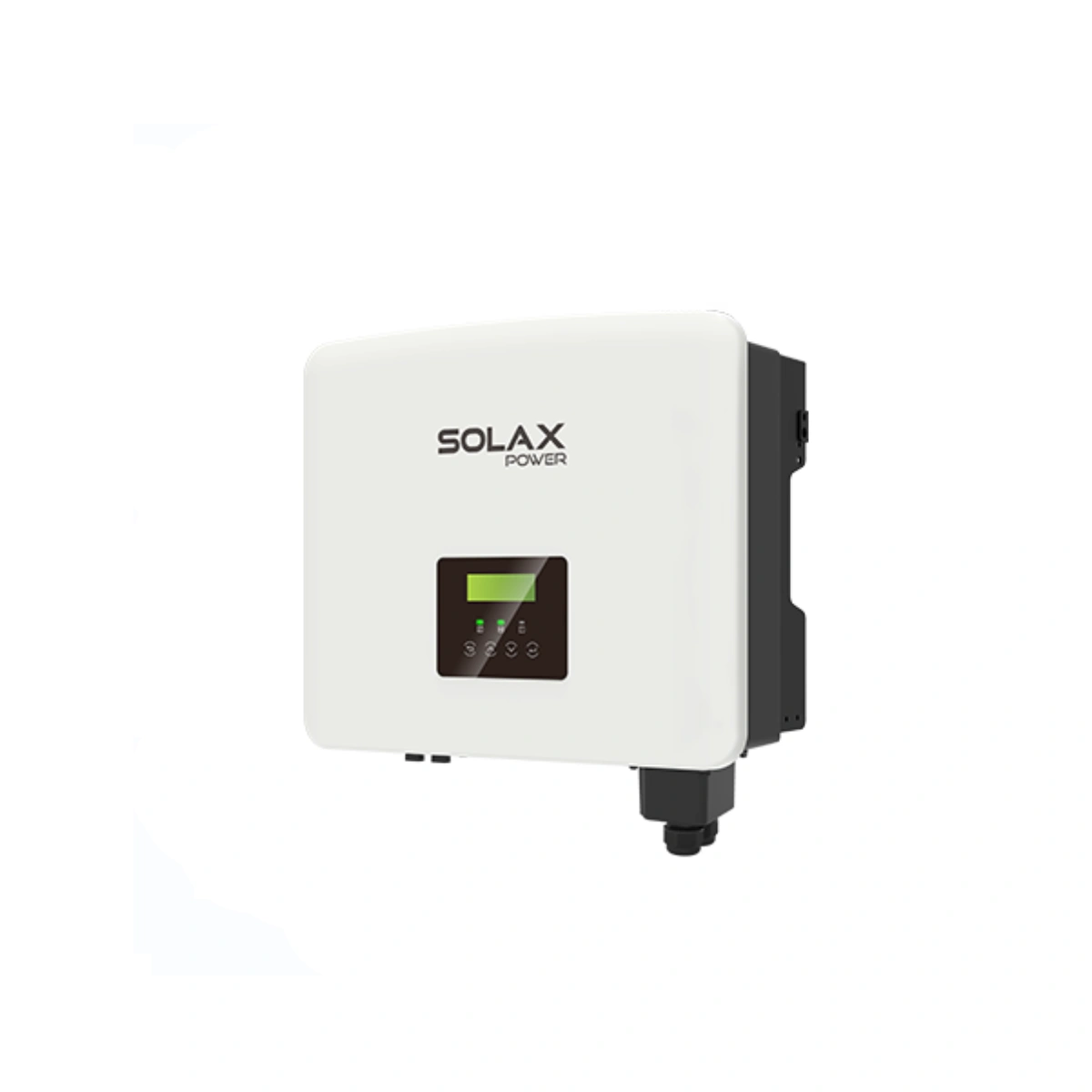

SolaX G4 X1-Hybrid-3.0-D Single Phase 3kW Hybrid Inverter

Q: What is the SolaX X1-Hybrid-3.0-D used for?

The SolaX X1-Hybrid-3.0-D is a 3kW single phase hybrid inverter used for residential solar PV systems with battery energy storage. It supports solar generation, battery charging, self-consumption, smart energy management and EPS backup output when installed with a compatible battery system.

Q: How much PV power can the SolaX X1-Hybrid-3.0-D support?

According to the SolaX datasheet, the X1-Hybrid-3.0-D supports up to 6.0kWp recommended PV array power, with 600V maximum PV input voltage and two MPPT trackers. This allows installers to design compact residential PV systems with flexible solar input capacity.

Q: Is the SolaX X1-Hybrid-3.0-D suitable for battery storage?

Yes. The SolaX X1-Hybrid-3.0-D is designed for battery energy storage systems and supports lithium and lead-acid batteries with an 80–480V battery voltage range and 30A maximum charge/discharge current. Battery compatibility should always be checked against the latest SolaX compatibility list.

Q: Does the SolaX X1-Hybrid-3.0-D provide backup power?

Yes. The X1-Hybrid-3.0-D includes EPS off-grid output with battery. The datasheet lists 3,000VA rated EPS output power, 6,000VA peak EPS output power for 10 seconds and a switchover time of less than 10ms when the system is correctly configured.

The SolaX G4 X1-Hybrid-3.0-D is a compact single phase 3kW hybrid inverter for residential solar PV and battery energy storage systems. Designed for professional solar installers and electricians, it supports up to 6.0kWp recommended PV array power, a 600V maximum PV input voltage, dual MPPT design, and a wide 80–480V battery voltage range for lithium and lead-acid battery compatibility.

With IP65 protection, 97.6% maximum efficiency, EPS backup output, <10ms switchover time, and smart energy management features, the SolaX X1-Hybrid-3.0-D is a strong option for small residential solar battery systems, self-consumption projects, backup-ready PV systems and installer-ready complete kits in Europe.

WIFI/LAN Stick and CT now included for free.

SKU: SOLAX-X1-HYBRID-3.0-D

889.88 €

In stock

EU Warehouse i

3Buy Partner stock.

Estimated delivery: 3–8 working days

Shipping type: Parcel / courier

In stock

Specification	Value
Brand	SolaX Power
Product series	X1-Hybrid G4
Model	X1-HYBRID-3.0-D
Product type	Single phase hybrid inverter
Rated AC output power	3,000W
Max. recommended PV array power	6.0kWp
Max. PV input voltage	600V
Rated PV input voltage	360V
PV operation voltage range	70–550V
MPPT voltage range	70–550V
Start-up voltage	90V
MPPT trackers / strings	2 MPPT / 1+1 strings
Max. input current per MPPT	16A / 16A
Max. short-circuit current per MPPT	20A / 20A
Rated AC output power	3,000W
Max. output apparent power	3,300VA
Max. output continuous current	14.4A
Rated AC voltage	1 / N / PE, 220V / 230V / 240V
Max. AC input apparent power	6,300VA
Max. AC input current	27.4A
Nominal AC frequency	50Hz / 60Hz
THDi at rated power	<2%
Battery type	Lithium / lead-acid
Battery voltage range	80–480V
Max. charge/discharge current	30A
Rated EPS output power	3,000VA
Peak EPS output power	6,000VA for 10 seconds
Switchover time	<10ms
Max. efficiency	97.6%
European efficiency	97.0%
Ingress protection	IP65
Operating temperature range	-35°C to +60°C, derating above 45°C
Dimensions	482 × 417 × 181mm
Net weight	24kg
Cooling concept	Natural cooling
Communication interfaces	CT/meter optional, external control RS485, dongle interface, DRM, NTC optional
Certifications	VDE-AR-N 4105, G99, G98, AS/NZS4777, EN50549, CEI 0-21, C10/11, IEC61727, RD1699, NRS097-2-1, PEA/MEA, VFR2019, PPDS

Weight	24 kg
Dimensions	482 × 417 × 181 mm
Brand	Solax Power
Manufacturer	SolaX
Product Category	Hybrid Inverters, Inverters
Inverter TypeAn inverter type refers to the specific technology and functionality of a solar inverter. The main types include grid-tied, off-grid, and hybrid inverters. Each serves a different purpose:	Hybrid
Rated Power [W]Indicates the maximum continuous power output or input the device can handle under standard operating conditions, measured in watts (W).	3 kW
Nominal AC Power [W]Nominal AC power refers to the rated output power of an inverter in alternating current (AC) form under standard operating conditions. It is usually expressed in watts (W) and represents the maximum continuous power an inverter can supply to an AC load without causing any damage or operational issues.	3kW
Max. Charge & Discharge Current [A]The maximum charge and discharge current refers to the highest current a battery or energy storage system can handle safely during charging and discharging processes. It is an important parameter that helps ensure the battery operates within safe limits and prevents damage, overheating, or other safety hazards.	30 A
Battery Type	Lithium Iron Phosphate (LiFePO4) – LFPLithium Iron Phosphate (LiFePO4) batteries are one of the most reliable and safest energy storage solutions for solar systems. Known for their long lifespan, high efficiency, and superior safety, these batteries are a top choice for residential, commercial, and off-grid solar storage., Low Voltage48 V battery solution for residential, off-grid, and small PV storage.
CommunicationSpecifies how the device communicates with other systems or networks—options include RS485, CAN, LAN, Wi-Fi, 4G, and Optical for data exchange and remote monitoring.	4G, LAN, WIFI, WIFI+4G, WIFI+LAN
Connector TypeDefines the electrical or fluid connection used in the system—includes plug types like MC4, Anderson, SAE, XT60, as well as ring terminals and hard-wired or quick-connect setups for solar, batteries, HVAC, and heating applications.	MC4Industry-standard PV connector for safe, weatherproof DC wiring.
Max. continuous output power [VA]As a unit of measurement for electrical power, VA represents how much energy a device consumes or produces or how much current it draws from the electrical circuit. In electrical circuits, power is measured in volts (V), as well as in amperes (A).	3300
Max. PV array input power [Wp]The PV array power is the maximum power of the PV modules connected to one PV inverter.	6000W
Max. PV input voltage [V]Maximum PV voltage, which is an absolute limit of the voltage of PV panels connected in series, and “nominal PV power”. If more wattage is available from the panels, the controller won\'t use it, it will just limit the current to what it can handle.	600V
Max. surge power [W]Surge power refers to the maximum power that the inverter can offer instantly. A portion of the \"boot power\" of the appliance is much higher than its rated operating power, such as a refrigerator, an air conditioner, induction cooker or other devices with a compressor.	6300
MPPT Voltage Range [V]The MPPT (Maximum Power Point Tracking) voltage range refers to the range of input voltages at which an MPPT solar charge controller or inverter can operate efficiently to optimize the power output of a solar panel or array.	70 V – 550 V
DC Startup voltage [V]The start-up voltage for a solar inverter is the minimum voltage required to initiate its operation. This voltage is crucial as it marks the point at which the inverter begins converting DC power from the solar panels into AC power for consumption.	90V
No. of MPP Trackers (MPPT)An MPPT, or maximum power point tracker is an electronic DC to DC converter that optimizes the match between the solar array (PV panels), and the battery bank or utility grid via the solar inverter. To put it simply, they convert a higher voltage DC output from solar panels (and a few wind generators) down to the lower voltage needed to charge batteries. Maximum Power Point Tracking (MPPT) is a feature built into all grid tied solar inverters. In the simplest terms, this funky sounding feature ensures that your solar panels are always working at their maximum efficiency, no matter what the conditions.	2
No. of PV StringsThe maximum string size is the maximum number of PV modules that can be connected in series and maintain a maximum PV voltage below the maximum allowed input voltage of the inverter. The solar cell module is a unit array in the PV generator. It consists of solar cells connected in series to build the driving force and in parallel to supply the required current. A series-connected group of cells are called a solar cell string.	2
Nominal AC frequency [Hz]Nominal frequency is the frequency specified by the manufacturer or supplier for a device in normal operation. 60Hz systems tend to be more efficient for longer distance transmission and are better suited for high-power applications, while 50Hz systems are more suited for low-power, local distribution. In the U.S. and many other places it is 60Hz. In Europe and many other places it\'s 50Hz.	50Hz, 60Hz
Nominal Current [A]Nominal current is essentially the normal electrical current that we would expect to flow through a circuit at any given time.	14.4A
Nominal Voltage [V]The nominal voltage is defined as the voltage value assigned to an electric circuit or system to designate its voltage class. In simple words, the voltage level of an electrical power system is called the nominal voltage of the system.	220V, 230V, 240V
PhasesDescribes the electrical phase configuration—Single-phase for residential use, Three-phase for commercial or industrial systems, and Split-phase common in North American households.	Single PhaseStandard residential power connection for solar and storage systems.
Protection Rating [IP]IP (or \"Ingress Protection\") ratings are defined in international standard EN 60529 (British BS EN 60529:1992, European IEC 60509:1989). They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc) and moisture.	IP65An IP65 rated enclosure gives protection against low pressure water jets from any direction, as well as condensation and water spray. It's suitable for most outdoor enclosures that won't encounter extreme weather such as flooding.
WarrantyNormally covers, manufacturing defects, durability issues, or equipment failure. The warranty typically covers the cost of replacing the faulty or damaged panel with a new working one. Please refer to the Warranty Documents of the product on the Manufacturer s webpage.	10 Years, Extended Warranty Available

PV Monitoring

24/7/365 Support

European Union

SolaX G4 X1-Hybrid-3.0-D Single Phase 3kW Hybrid Inverter

Upgrade Account!

Product description

SolaX X1-Hybrid-3.0-D 3kW Single Phase Hybrid Inverter for Residential PV and Battery Storage

3kW Output with Up to 6kWp Recommended PV Array Power

Dual MPPT Design for Flexible Residential Solar Layouts

Battery-Ready Hybrid Inverter for Low and Medium Residential Energy Storage

EPS Backup Output with Fast Switchover

Smart Energy Management for Installer-Ready Solar Homes

IP65 Protection for Flexible Installation

Key Technical Specifications

Recommended Applications

Why Solar Installers and Electricians Choose the SolaX X1-Hybrid-3.0-D

B2B Solar Inverter Supply from 3Buy Solar

Product Compatibility and System Design Notes

Product Datasheet and Downloads

Datenblatt SolaX X1-Hybrid G4 DE

Installationshandbuch SolaX X1-Hybrid G4 DE

Benutzerhandbuch SolaX X1-Hybrid G4 DE

FAQ: SolaX X1-Hybrid-3.0-D Hybrid Solar Inverter
